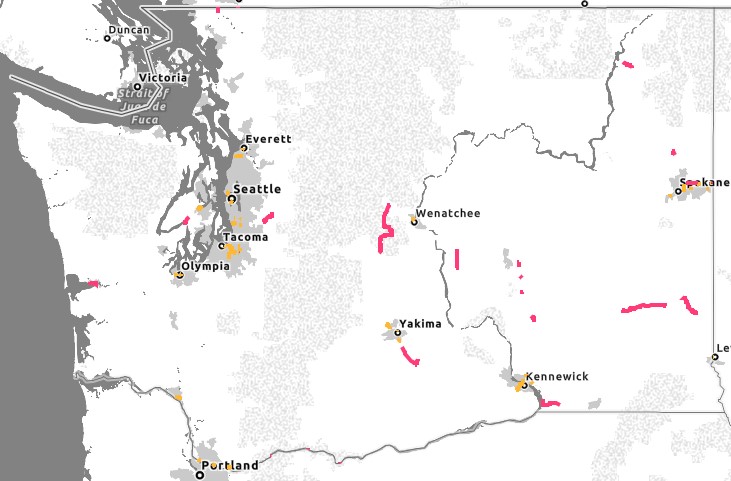

Name: Freight Data NHFN Critical Urban and Rural Freight Corridors

Display Field: Corridor_Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: The National Highway Freight Network (NHFN) consists of four components: 1) Primary Highway Freight System (PHFS): this is a network of highways identified as the most critical highway portions of the U.S. freight transportation system determined by measurable and objective national data; 2) Other Interstate portions not on the PHFS: these highways consistof the remaining portion of Interstate roads not included in the PHFS; 3)Critical Rural Freight Corridors (CRFCs): these are public roads not in an urbanized area which provide access and connection to the PHFS and the Interstate with other important ports, public transportation facilities, or other intermodal freight facilities; 4) Critical Urban Freight Corridors (CUFCs):these are public roads in urbanized areas which provide access and connection to the PHFSand the Interstate with other ports, public transportation facilities, or other intermodal transportation facilities. FHWA designates the PHFS, while states and in certain cases, Metropolitan Planning Organizations (MPOs), are responsible for designating public roads for the CRFCs and CUFCs in accordance with U.S.C Title 23, Section 167. In2022, WSDOT updated the Critical Urban and Rural Freight Corridor designation in collaboration with MPO and RTPO partners in Washington state. This GIS dataset provides an inventory ofthose corridors, reflecting the current designation adopted in the 2022 Washington State Freight System Plan. Another GIS dataset is also available for the PHFS and Non-PHFS Interstates, reflecting the 2022 redesignation by the FHWA. The critical urban and rural corridor designation process and criteria can be found in the 2022 Washington State Freight System Plan, appendix G: https://wsdot.wa.gov/construction-planning/statewide-plans/freight-rail-plans/freight-system-plan

Copyright Text: WSDOT Rail, Freight and Ports Division, FHWA

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.380436682242444E7
YMin: 5706544.249721172
XMax: -1.3010687005939761E7
YMax: 6252155.9295935165
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Corridor_Type
Field 2: Comments
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: CRFC,
  Label: CRFC
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 81, 81, 255]
  Width: 2
• Value: CRFC,Proposed Route
  Label: CRFC - Proposed Route
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [0, 81, 81, 255]
  Width: 2
• Value: CUFC,
  Label: CUFC
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [203, 23, 0, 255]
  Width: 2
• Value: CUFC,Proposed Route
  Label: CUFC - Proposed Route
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [204, 24, 0, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• RouteIdentifier ( type: esriFieldTypeString, alias: RouteIdentifier, length: 50 )
• BeginAccumulatedRouteMile ( type: esriFieldTypeSingle, alias: BeginAccumulatedRouteMile )
• EndAccumulatedRouteMile ( type: esriFieldTypeSingle, alias: EndAccumulatedRouteMile )
• ApproximateLength ( type: esriFieldTypeSingle, alias: ApproximateLength )
• MPO_RTPO ( type: esriFieldTypeString, alias: MPO_RTPO, length: 100 )
• Corridor_Name ( type: esriFieldTypeString, alias: Corridor_Name, length: 50 )
• Start_Location ( type: esriFieldTypeString, alias: Start_Location, length: 75 )
• End_Location ( type: esriFieldTypeString, alias: End_Location, length: 75 )
• Corridor_Type ( type: esriFieldTypeString, alias: Corridor_Type, length: 6 )
• Agency ( type: esriFieldTypeString, alias: Agency, length: 100 )
• StateID ( type: esriFieldTypeString, alias: StateID, length: 3 )
• DataItem ( type: esriFieldTypeString, alias: DataItem, length: 10 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 255 )
• SnapshotDate ( type: esriFieldTypeDate, alias: SnapshotDate, length: 8 )
• PublishDate ( type: esriFieldTypeDate, alias: PublishDate, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
